Atari ST motherboard revisions


The Atari ST went through a fair amount of revisions during its lifetime.

Please feel free to upload a picture of your motherboard

Rev C:

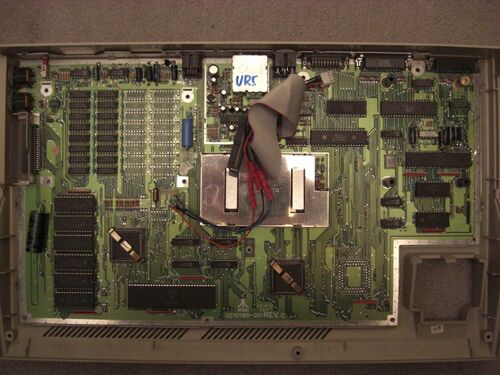

C070789-001 Rev. C

Submitted by insanity

Rev D:

C070523-001 Rev. D

Submitted by Nyh

Rev H:

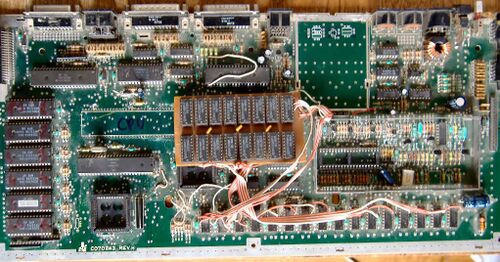

C070243 Rev. H

Submitted by ppera

Rev I:

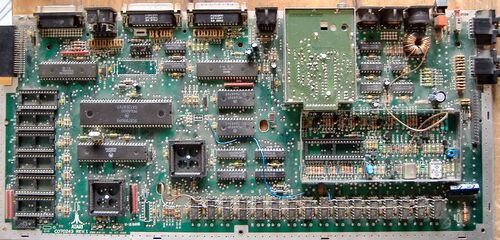

C070243 Rev. I

Submitted by ppera

Rev 1:

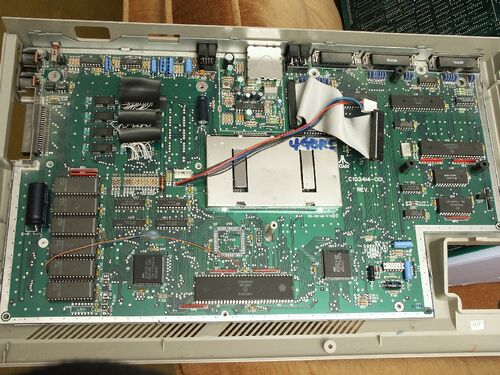

C103414-001 Rev. 1

Submitted by Stefan jL

Rev 1.1:

C103175 Rev. 1.1

Submitted by ppera

C103414 Rev. 1.1

Submitted by insanity

Rev 4.0:

C100167-001 Rev. 4.0

Submitted by ppera
